• Custom Appli....

  Product introduction SUMMARYWisman＇s PRA modular high voltage power supply is ideal for OEM usage. It is specifically designed to meet the needs of applications requiring a hot switched reversible output voltage. The output polarity of the unit can be quickly and safely reversed via the Polarity Control Signal provided on the interface connecter. Both the output voltage and current are fully adjustable via ground referenced remote programming signals such that 0 to 10Vdc corresponds to 0 to 100% rated output voltage and current. Remote motioning functionality is provided by voltage and current test points such that 0 to 10Vdc corresponds to 0 to 100% rated voltage and current. Additionally remote polarity and mode indicators provide a compre-hensive overview of power supply operation. An optionalUSB 2.0、RS-232 or RS-485 is available .TYPICAL APPLICATIONS： Electrospinning Mass Spectrometry Capillary Electrophoresis Electrostatic Research DNA Analysis Microchip Electrophoresis Electrostatic Chuck (E-Chuck)OPTIONS： USB USB Interface RS232 RS-232 Interface RS485 RS-485 Interface 5VPM 0 to 5 Volt Programming and Monitor ScalingSPECIFICATIONS： Input: +24Vdc±10% . Output: See“PRA SELECTION TABLE” Polarity: Auto reversible via commandPower: 10 watts, maximumVoltage Regulation: Load: 0.01% of output voltage no load to full load. Line: ±0.01% for ±10% change in input voltage. Ripple: 0.1% Vp-pStability: 0.02% per 8 hours after 1/2 hour warm-up.Temperature coefficient: 25ppmEnvironmental: Operational: 0°C to +40°C Storage: -40°C to +85°CHumidity: 10% to 85% RH, non condensingCooling: Free air ConvectionDimensions: 0.98”H x 3.94”W x 4.96”D (25.00mm x 100.00mm x 126.00mm)Interface Connector: 25 pin male D connectorInformation on wisman and their wide range of high voltage products is available by calling+86-29-3369-3480, or by visiting their website: http://www.wismanhv.com ,sales@wismanhv.comwisman High Voltage power supply is the world's leading provider of custom designed and standard AC-DC and DC-DC high voltage power converters for: medical, industrial, analytical, and security applications; semiconductor manufacturing; scientific instrumentation; and power feed systems for undersea cables. wisman is headquartered in the china. that provide design, manufacturing and service to our customers throughout the world.

• High Voltage....

  Product introduction SUMMARYThe ZA range is a unique family of high voltage power supplies, extending the operation and versatility of Wisman High Precision series. The ZA units feature very fast slewing and settling t imes, together with the ability to slew cleanly through zero. With a differential control input, they opera te like a high voltage amplifier with very tight temperature co-efficient of SPECIFICATIONSInput: +24Vdc , MAX450mA,Output:±0.05KV,±0.1KV,±0.2KV,±0.3KV,±0.4KV,±0.5KV,±0.6KV,±0.8KV,±1KV,±1.25KV,±1.5KV,±2KVBy externa 20kΩ potentiometer or external control voltage(Vcon-in) -10Vdc to +10 VdcStandard:+24V input,-10Vdc to +10 Vdc programming.Regulation: Line : ±0.01% of max voltage for Vin±1V. Load : 0.01% of max voltage for full load change.Stability:0.01%/hour 0.03%/8hour.Minimum ripple:5mV(maximum voltage and maximum current)Temperature Coefficient:10ppm/°CTemperature Range:Operating : -10°C to +50°CStorage : -25°C to +85°CProtective Functions:Units protected against reversed power input, reversed / essivecontrollingvoltage input,continuous overloading / short circuit in outputDimensions:尺寸：D70 X W57 X H20Weight:150g, typicalInformation on wisman and their wide range of high voltage products is available by calling +86-29-3369-3480, or by visiting their website: http://www.wismanhv.comWisman High Voltage power supply is the world's leading provider of custom designed and standard AC-DC and DC-DC high voltage power converters for: medical, industrial,analytical, and security applications; semiconductor manufacturing; scientific instrumentation; and power feed systems for undersea cables. wisman is headquartered in the china. that provide design, manufacturing and service to our customers throughout the world.

• Rack mountDL

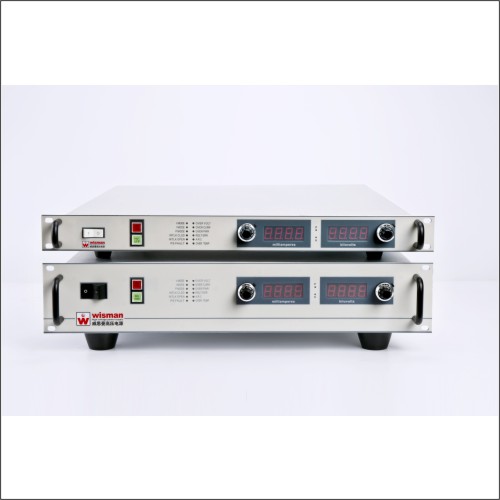

  SUMMARYTWisman's DL Series of high voltage power supplies are designed to meet uncompromising performance standards in a minimum of space. Their circuitry includes a resonant high frequency inverter with proprietary control which provides faultfree operation in extreme transient and arcing environments with greater than85%efficiency.These full featured supplies are available in a wide range of outputs with many options.TYPICAL APPLICATIONSCapacitor Charging, Electronic Component Aging, Insulation Test, High Voltage Testing, Electron Beam /Ion Beam,Focus Ion Beam, Ion Inpouring, Lithography Technology, Electrostatic Applications, Electrostatic Deflexion, lectrospinning,Electrophoresis Capillary Electrophoresis, Microchip Electrophoresis, DNA sequencing, Piezoelectricity material Testing,Science,Laboratory Applications, Industrial Applications. SPECIFICATIONSInput:86~256VAC ,Maximum 10.0A .1kV~130kV Maximum output Voltage option.10W~1200W Maximum output power option.Stability:0.02% per 8 hours after 1/2 hour warm-up.Temperature Coefficient:≤25ppm/℃.Ripple:0.01% p-p of maximum rated output voltage.Voltage Programming:Front panel: voltage are continuously adjustable from 0 to maximum voltage by internal potentiometers.External remote:voltage are continuously adjustable from 0 to maximum voltage by 0 ~ +10Vdc External voltage.Current Programming(option):Front panel: current are continuously adjustable from 0 to maximum current by internal potentiometers.External remote :current are continuously adjustable from 0 to maximum current by 0 ~ +10VdcExternal voltage.Voltage/Current Monitor:0 ~ +10Vdc volt corresponds to 0 to maximum output, Zout=11kΩ, accuracy:±1%.Remote Voltage Monitor:JB2 contain a 0 ~ +10Vdc voltage signal,it can connect digitalor index display.Voltage Load Regulation:0.005% ( no load to full load change).Voltage Line Regulation:±0.005% (input voltage line change±10%).Current Load Regulation:0.005% ( no load to full load change).Current Line Regulation:±0.005% (input voltage line change±10%).Connector:HV output connector:series output option(1m);input connector:DB15 connector,contain control and monitor signal. Operating Temperature:0℃~+50℃.Storage Temperature:-40℃~+85℃Dimensions 10W~300W:2.17”H x 19.00”W x 19.00”D(55mm x 482.5mm x482.5mm).Dimensions 600W~1200W :5.17”H x 19.00”W x 19.00”D(132.00mm x 482.5.00mm x482.5.00mm).Weight:7.7-14kg.Information on wisman and their wide range of high voltage products is available by calling +86-29-3369-3480, or by visiting their website: http://www.wismanhv.comWisman High Voltage power supply is the world's leading provider of custom designed and standard AC-DC and DC-DC high voltage power converters for: medical, industrial,analytical, and security applications; semiconductor manufacturing;scientific instrumentation; and power feed systems for undersea cables. wisman is headquartered in the china. that provide design, manufacturing and service to our customers throughout the world.Wisman high voltage is an ISO9001:2008 registered company
